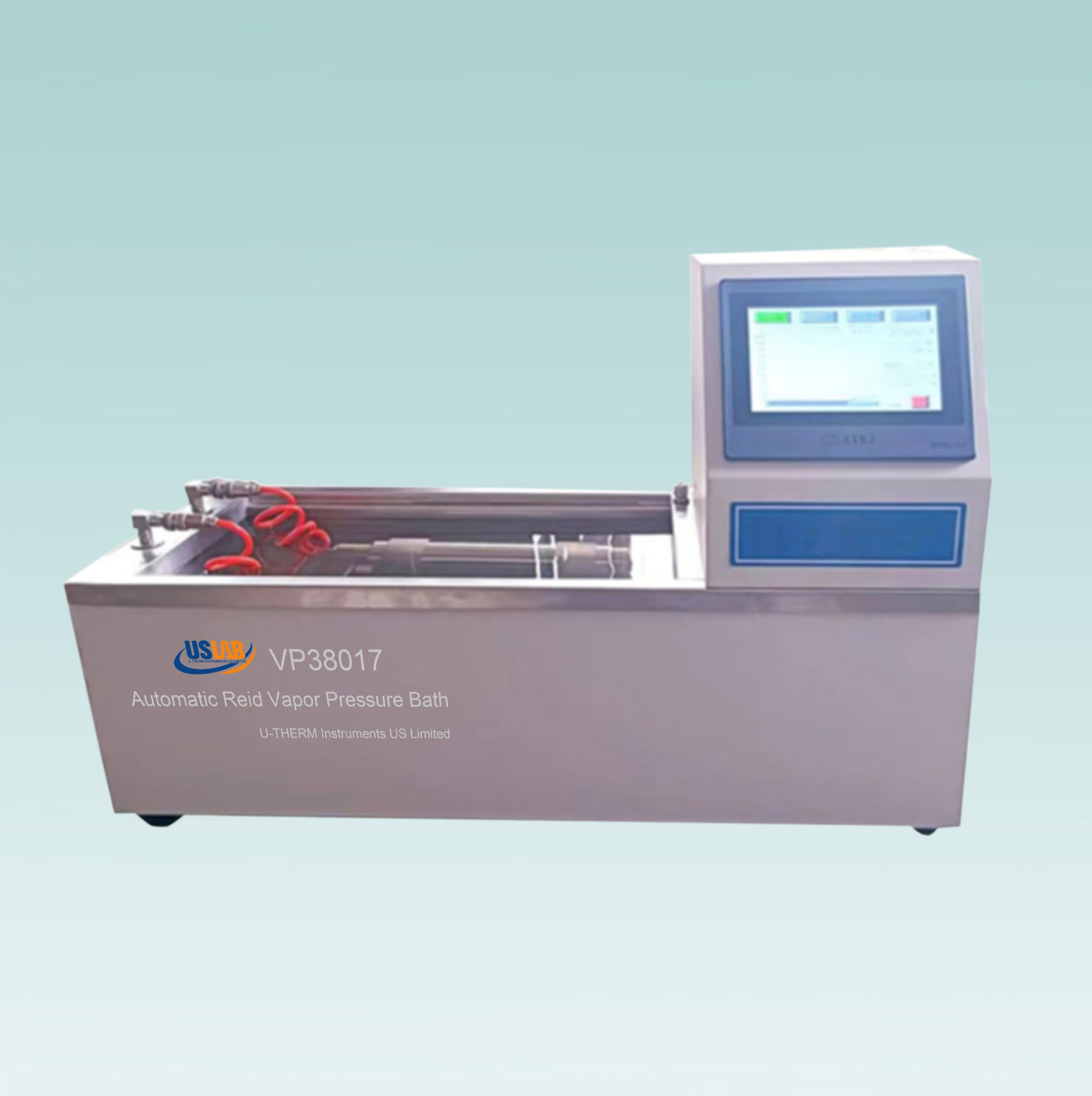

Automatic Reid Vapor Pressure Bath

Features

1.        Equipped with a 7-inch color TFT LCD touch screen for human-machine interaction. The interface is aesthetically designed with Chinese character displays, ensuring intuitive and clear operations.

2.        Fully automated testing process. After setting parameters, the instrument autonomously controls water bath temperature, bomb rotation, pressure detection, timing, and result judgment without manual intervention. Results are automatically displayed, stored, and printed upon completion.

3.        Real-time display of test parameters (temperature, time, pressure) for continuous monitoring and system status tracking.

4.        Cyclic storage of up to 10,000 test results with instant retrieval. Integrated thermal printer offers high-speed, noise-free printing.

5.        Online pressure adjustment function enables real-time sensor error correction to meet standard calibration requirements.

6.        Online temperature compensation function effectively eliminates minor deviations caused by sensor lead wires.

7.        High-precision measurements with excellent repeatability and reproducibility.

Technical Specifications

1.        Compliance Standards: ASTM D323

2.        Measurement Range: 0-200 kPa

3.        Temperature Control Range: 0.0°C-99.9°C

4.        Resolution: 0.1°C

5.        Temperature Accuracy: 37.8±0.1°C

6.        Temperature Sensor: PT100

7.        Test Bath: Water bath

8.        Test Bombs: 2 units

9.        Air Chamber/Gasoline Chamber Ratio: 4:1

10.      Power Supply: AC 220V ±10%, 50Hz

11.      Power Consumption: 1600W

12.      Dimensions: 800mm×450mm×400mm

13.      Net Weight: 40kg

14.      Operating Temperature: 5°C-40°C

15.      Humidity: ≤85% RH
