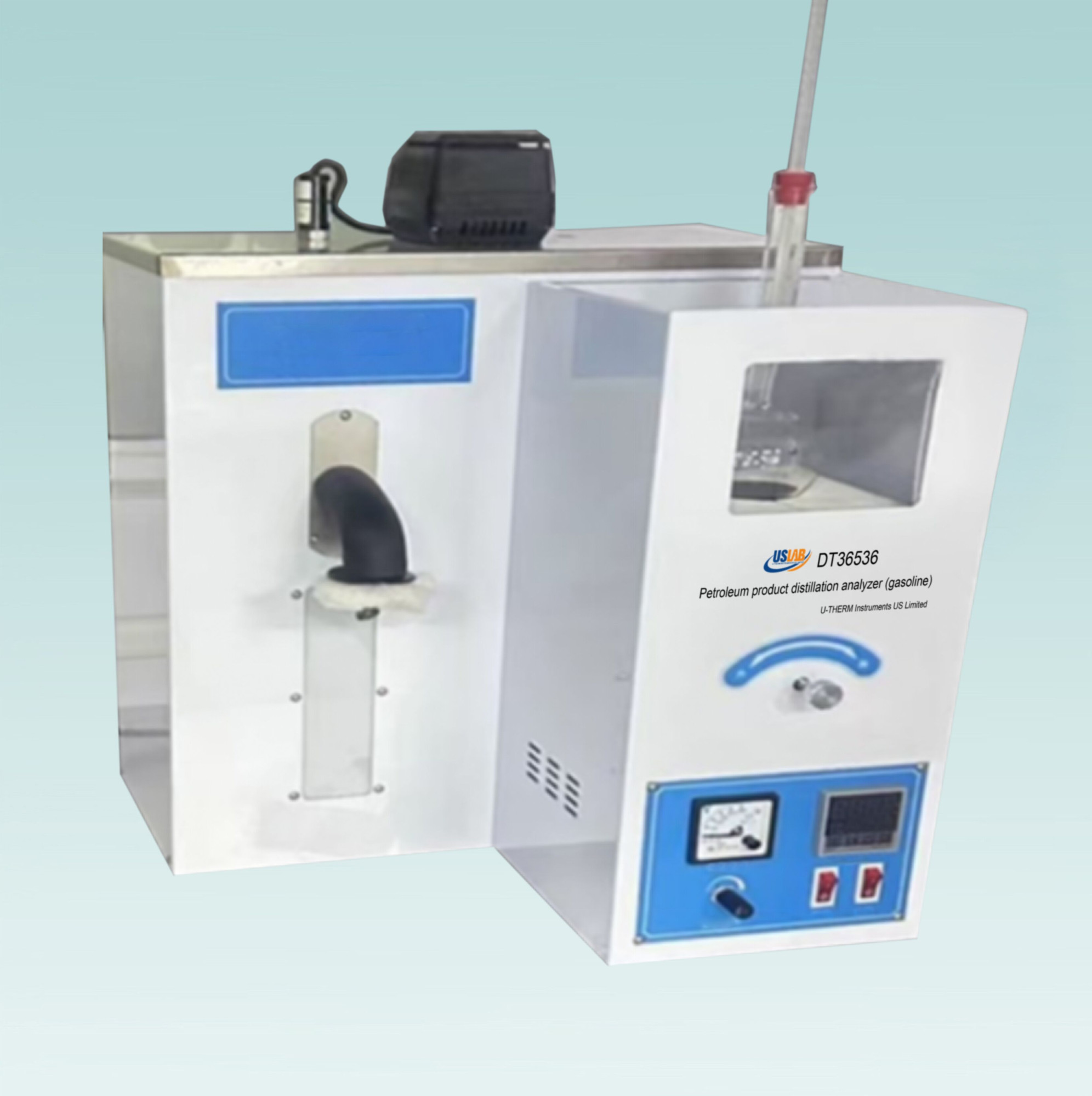

Petroleum product distillation analyzer (gasoline)

Features
The Petroleum Product Distillation Tester is designed and manufactured in compliance with the ASTM D86 test method. It is suitable for natural gasoline (stabilized light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, special-boiling-point solvents, naphtha, kerosene, diesel, crude diesel fraction fuels, and similar petroleum products.

● Advanced Measurement System:

Equipped with a front-mounted double-bend condenser tube made of corrosion-resistant 304 stainless steel.

Quartz glass tube-encased heater ensures high thermal efficiency, oxidation resistance, oil splash-proof design, safety, and cost-effectiveness.

● User-Friendly Design:

Openable glass window on the heating chamber allows clear observation.

Distance between the heating furnace and flask is adjustable via a knob for convenient operation.

● Precise Temperature Control:

Cold bath temperature is regulated by an intelligent digital temperature controller with PID auto-tuning function, ensuring ±0.1℃ accuracy.

● Efficient Cooling System:

Compressor-based refrigeration ensures rapid cooling and long service life.

● Reliable Heating System:

Heating rate controlled by a solid-state voltage regulator with sensitive and durable voltage adjustment.

High-temperature quartz tube heating elements allow easy replacement.

Furnace lifting knob features reverse-spiral locking for sturdiness and easy disassembly.

● Durable Construction:

Corrosion-resistant stainless steel bath tank with excellent sealing.

Pre-installed cooling medium eliminates the need for user refilling.

● Enhanced Efficiency:

Built-in cooling fan accelerates furnace cooling, improving experimental efficiency.

● Overall Advantages:

Compact structure, sleek appearance, and intuitive operation.

Technical Parameters

1.        Standard Compliance: ASTM D86

2.        Test Unit: Single-tube

3.        Cooling Method: Compressor refrigeration

4.        Cold Bath Temp. Range: 0–80℃

5.        Temp. Control Accuracy: ±0.1℃

6.        Distillation Flask: 125ml

7.        Graduated Cylinder: 100ml

8.        Lighting: LED strip/tube

9.        Power Supply: AC220V, 50Hz

10.      Power Rating: 2200W

11.      Ambient Temp.: 10–30℃

12.      Relative Humidity: ≤85%
