Electric-heating freeze dryer

This series of freeze dryers with electric heating function (patent machine). Products can be freeze dried in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models have shelf heating and programmable functions. They can records freeze drying curves; data can be output by U-disk. User can clearly view the freeze-drying process.



Features

The company's patented product square warehouse in situ vacuum freeze dryer, pre-freezing, drying in situ completed, easy to operate, good drying effect.

The drying chamber door is made of ACRYLIC material, which is colorless, transparent and can observe the whole process of freeze-drying.

The inflatable (drainage) valve adopts safety diaphragm valve, which can connect inert gas source, fill inert gas after drying, and prolong the shelf life of materials.

Specialized gas diversion technology, uniform cold trap ice capture, ice capture ability.

International well-known brand compressor, high efficiency and energy saving, long service life, low noise.

The patented technology of partition and the fuzzy control technology of partition temperature have the advantages of small temperature difference of shelf, high precision of temperature control and even drying effect.

Powerful sensor calibration function ensures long-term use of measurement accuracy.

7-inch real-color industry embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.

The specially designed FD-EMB control system can preserve hundreds of formulations, each of which contains 50 temperature control sections, so as to improve the process optimization rate.

Intelligent data recording system can record and display the temperature curve of cold trap, sample temperature curve and vacuum curve in real time. The derived data can be browsed and printed by computer and operated in a variety of ways to facilitate process optimization and drying effect verification.

Flexible manual + automatic control mode, manual for exploring process, automatic for batch production.

Real-time alarm display and historical alarm inquiry functions facilitate fault diagnosis and equipment maintenance.

User level and password can be set, and operation management can be decentralized.



Optional accessories and functions

Cold trap temperature -80

Eutectic point tester

Vacuum pump anti-return device

Cold trap electric heating defrosting

Oil mist filtration system

Vacuum regulating system

LYO-MEGA Software System

Mobile App Monitoring System

Backfill filter

Eggplant bottle device

International brand vacuum pump

Non-standard customization



Technical index

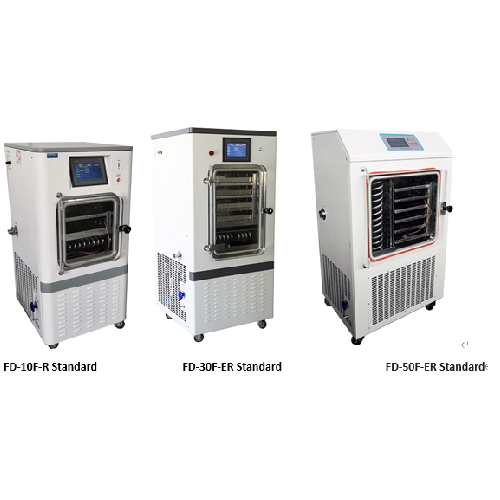

Model

Unit

FD-10F-R

Standard

FD-10F-TP

Top-press

FD-30F-ER

Standard

FD-50F-ER

Standard

Freeze-drying area

0.2

0.1

0.4

0.6

Cold trap   temperature

-60 (no-loading), option -80 (no-loading)

Vacuum degree

Pa

≤ 5 (no-loading)

Shelf temp range

-50-+70 (no-load)

Water-capture   capability

kg/24h

≥ 6

≥ 8

≥ 10

Tray dimension

mm

265×395

265×395

295×335

295×335

Trays number

pc

2

1

4

6

Shelf size

mm

270×400

270×400

300×340

300×340

Shelf spacing

mm

70

50

50

Power

w

2000

2700

4500

Weight

kg

210

280

450

Dimension

mm

655×640×1200

890×660×1210

890×670×1470

Bulk capacity (thickness   10mm)

L

2

1

4

6

Vial loading   number

piece

-

Ф12mm777

-

-

piece

-

Ф16mm434

-

-


piece

-

Ф22mm220

-

-


Defrosting

-

Natural defrosting   (option electric defrosting)

Power

-

1Ph + N + PE, 220V

1Ph + N + PE, 220V

3 phases + N + PE,   38
